Kern Optical Instruments

Kern DKM2-A precision optical theodolite

Kern DKM2-A

Universal optical one second theodolite with upright telescope, digital Micrometer readout to 1”. With automatic vertical indexing. Two speed slow motion screws with illumination set in metal carrying case. Instruments can use Kern auto-centering base, tribrach (with 5/8x11” screw) and new style LMC centering base.

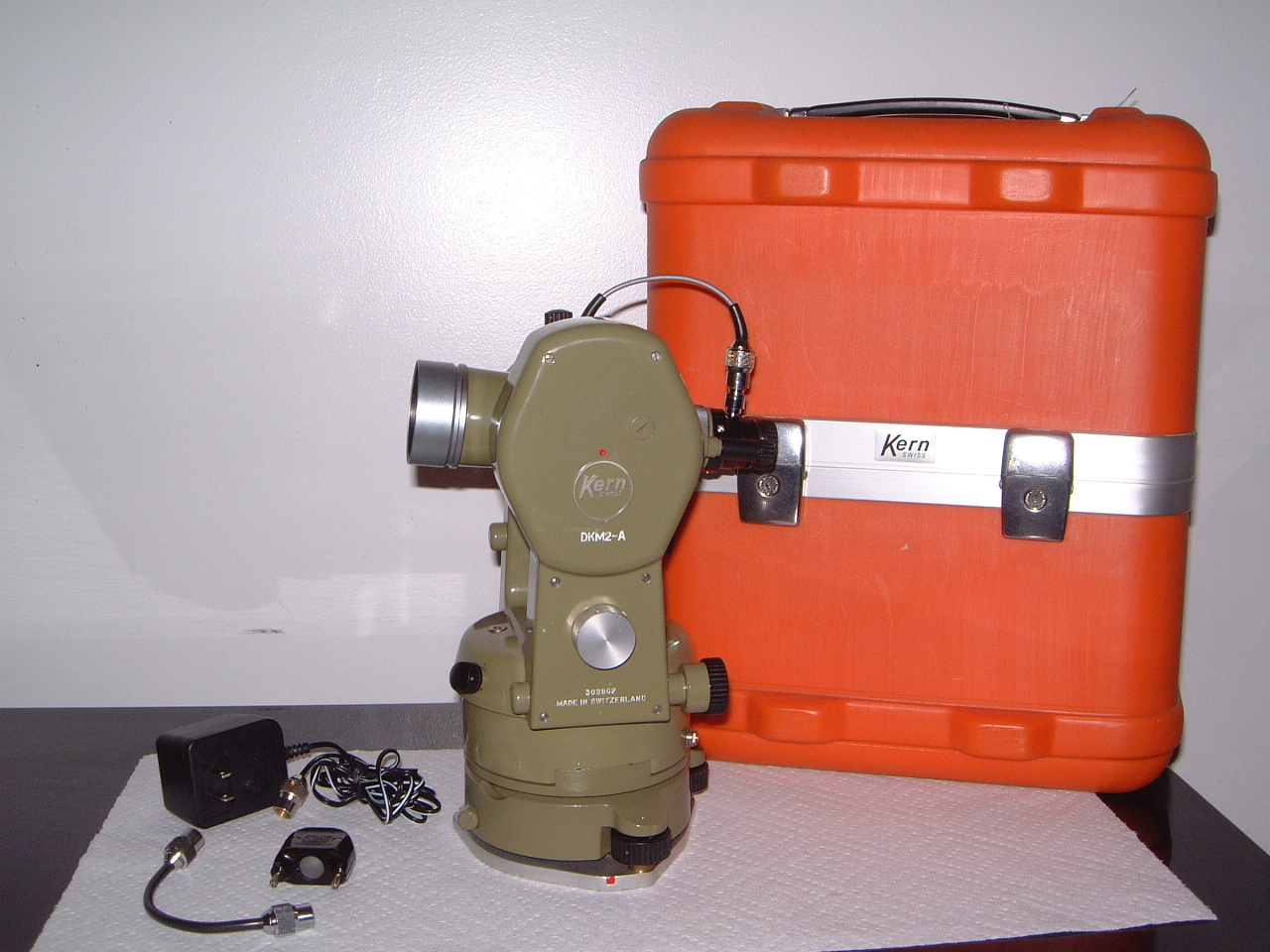

Kern DKM2-AC with Built-in bright-line autocollimation eyepiece

Kern DKM2-AC

Kern DKM2-A with Build in bright-line auto-collimation eyepiece. Auto-collimation is an optical procedure in which a projected image of a cross–hair is reflected back upon itself. The technique is advantageously employed when small changes in direction or inclination are to be detected or measured. It is very well suited for precision alignment and for innumerable control problems. Kern bright-line autocollimation eyepiece has clear reflected image. The best instrument for working on high precision alignment.

Kern DKM2-A with Elbow eyepiece

Kern DKM2-A with Elbow eyepiece

Kern DKM2-A telescope with 90 deg. Elbow eyepiece for zenith observation. Very clean image and easy to operate.

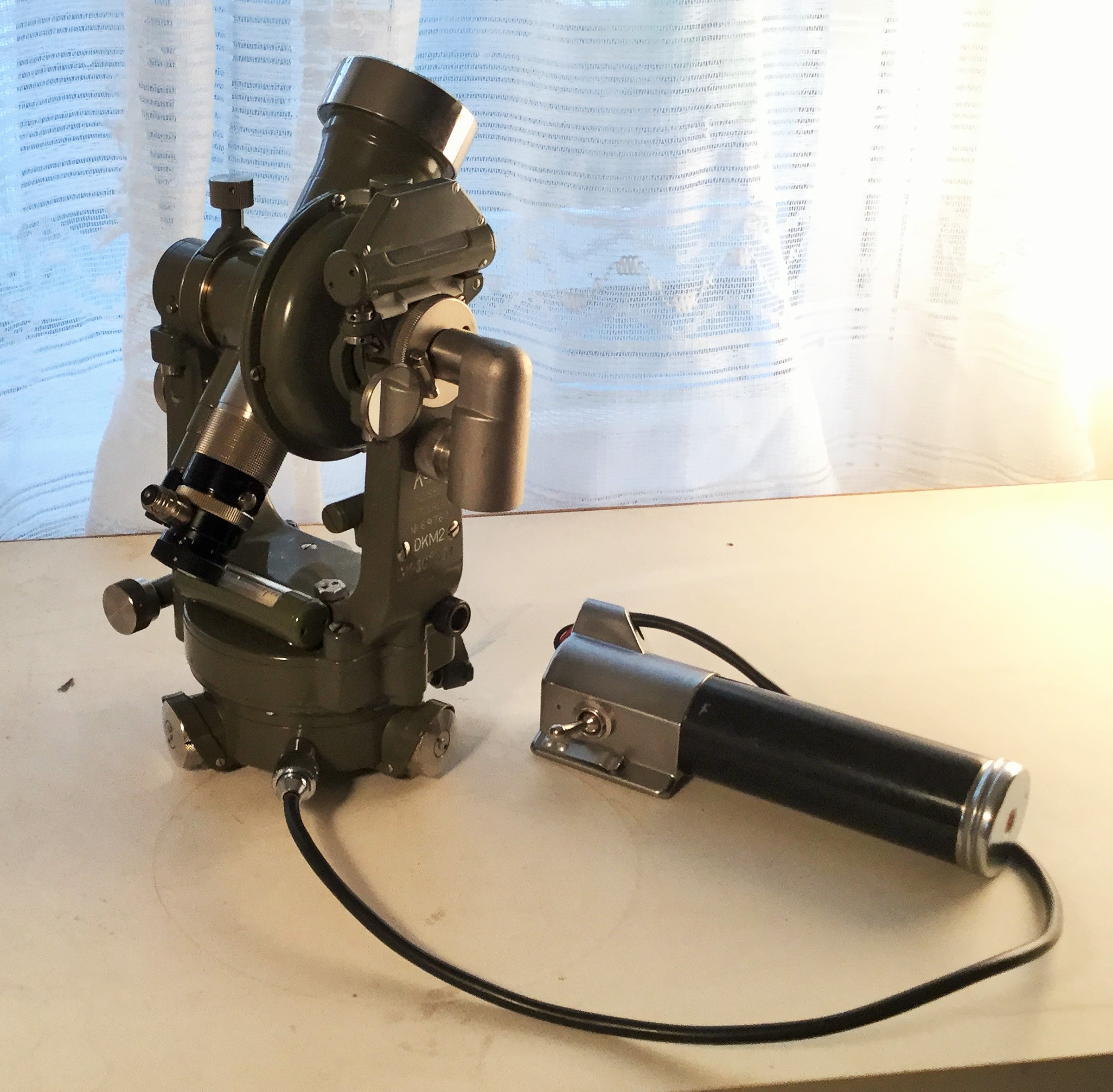

Kern DKM2 with illumination light and battery case

Kern DKM2 optical one second theodolite

Kern DKM2 designed in 1930s, it is a double circle theodolite with an optical micrometer, light weight with steel frame. This one was probably made in 1960s. Instrument in very good condition. Good for also a good collection item.

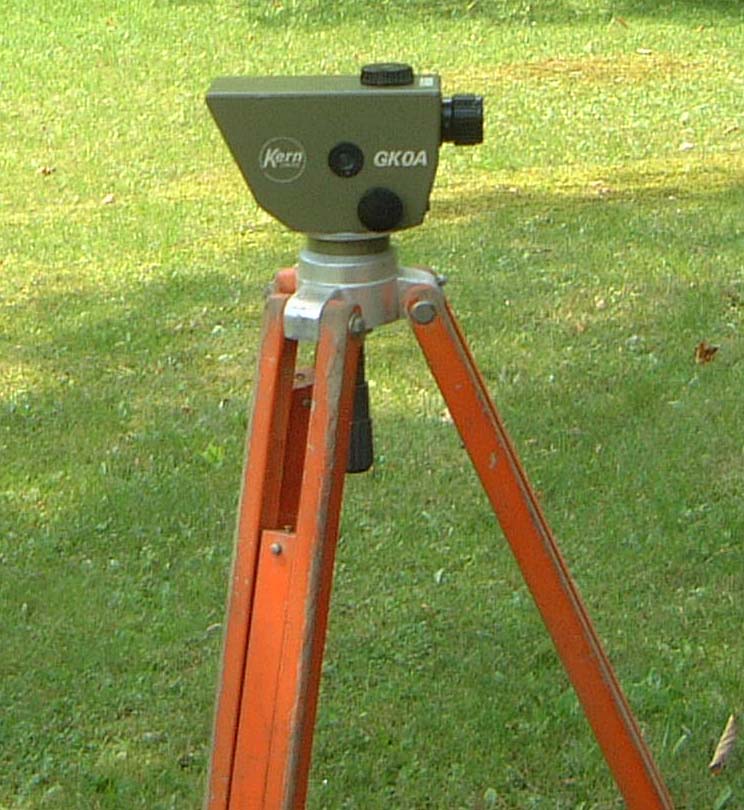

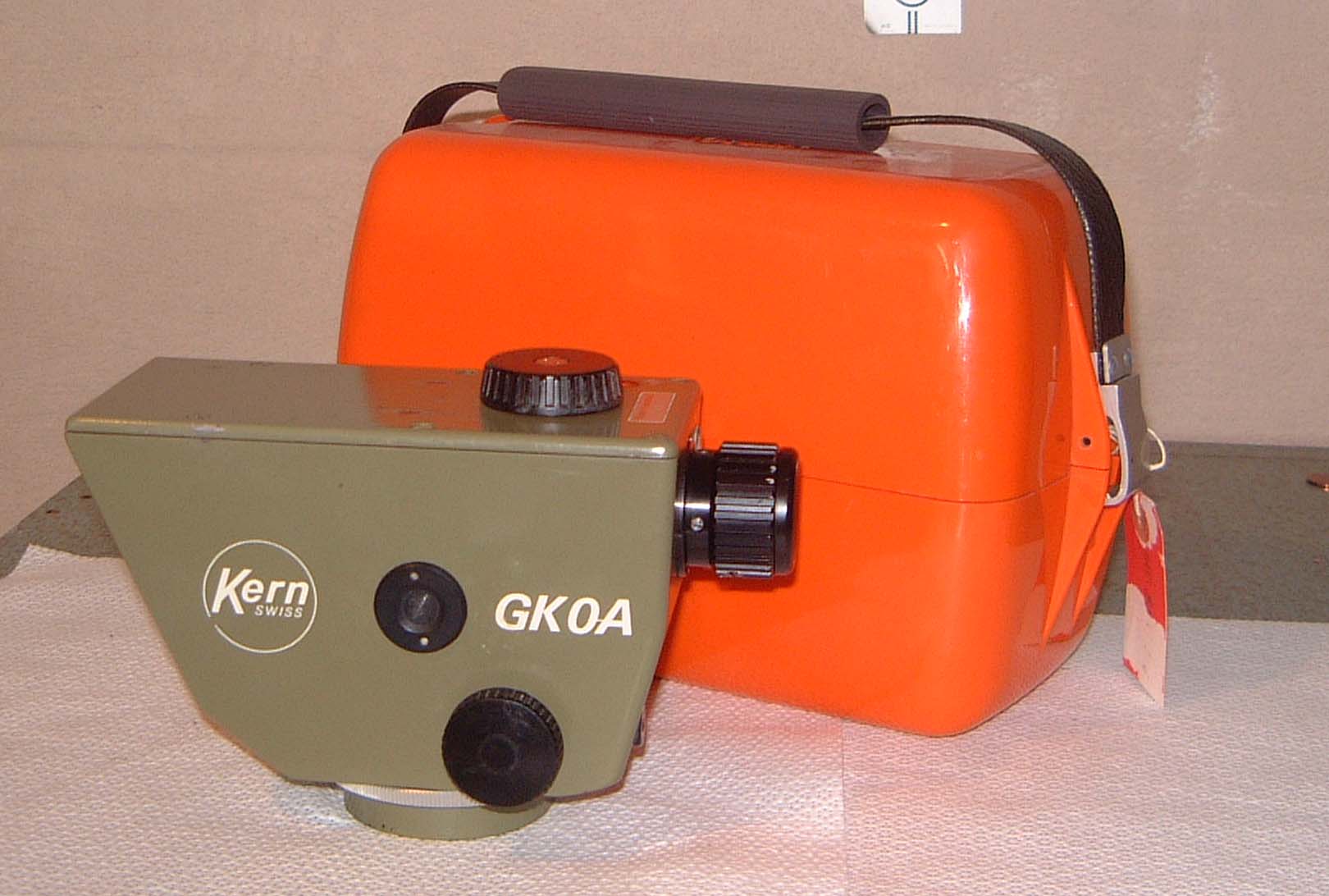

Kern GKO-A automatic level

Kern GKO-A automatic level

Kern is ruggedly build automatic level with ball bearing pendulum compensator. Simple to use and reliable in operation.

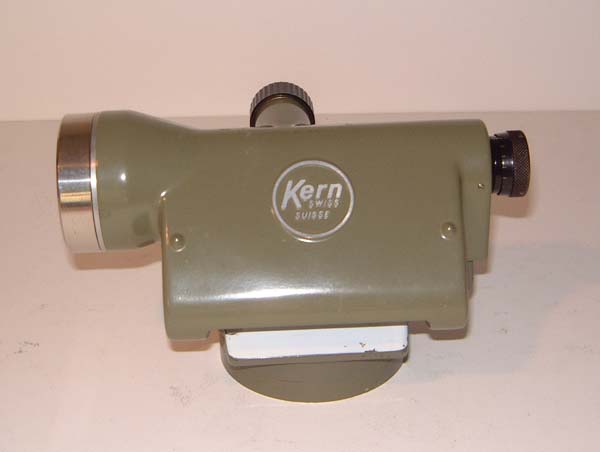

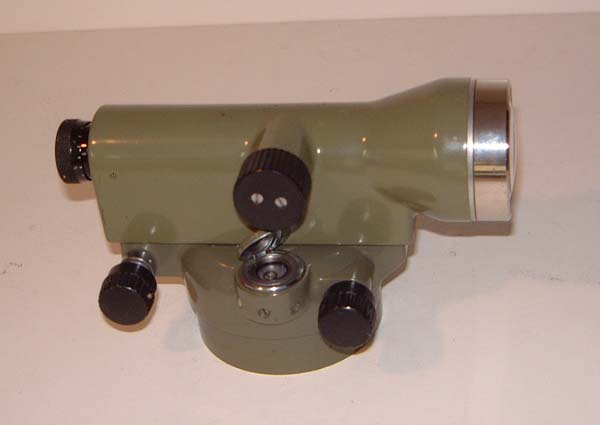

Kern GK23 precise tilting level

Kern GK23 precise tilting level

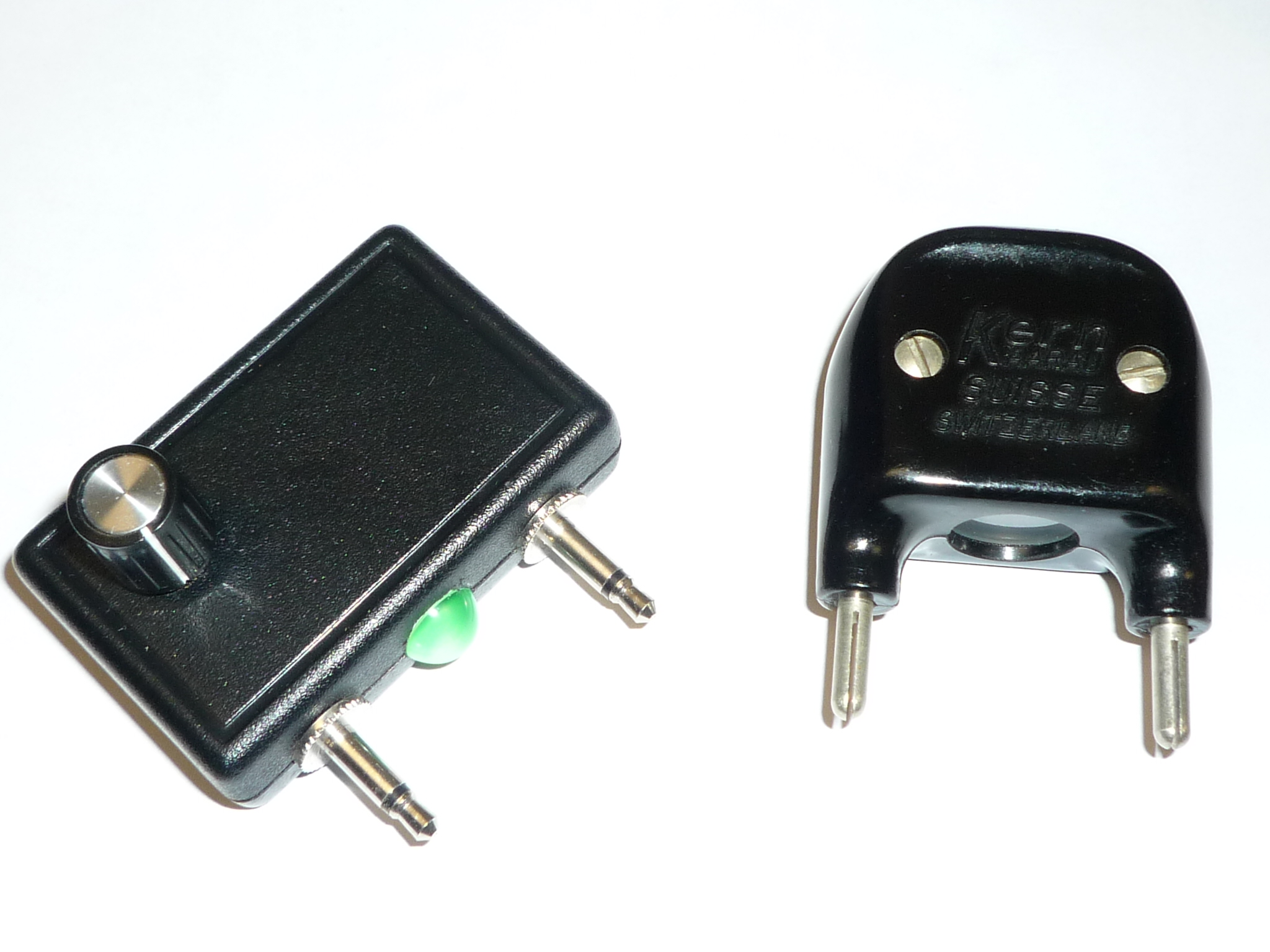

Light fixtures for Kern optical theodolites

Light fixtures for Kern optical theodolites

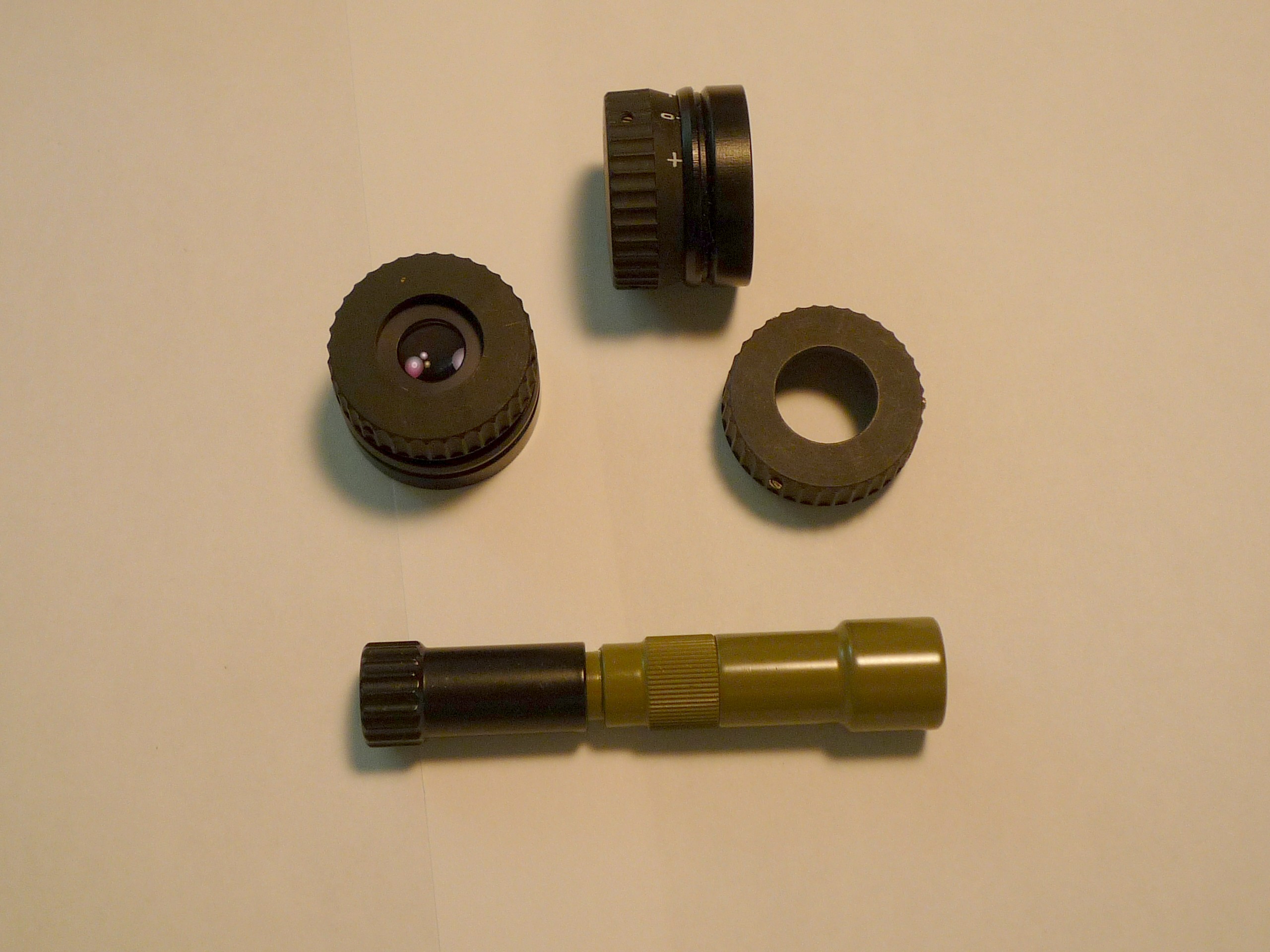

Kern eyepieces for E1/E2 and DKM2-A

Kern eyepieces for E1/E2 and DKM2-A

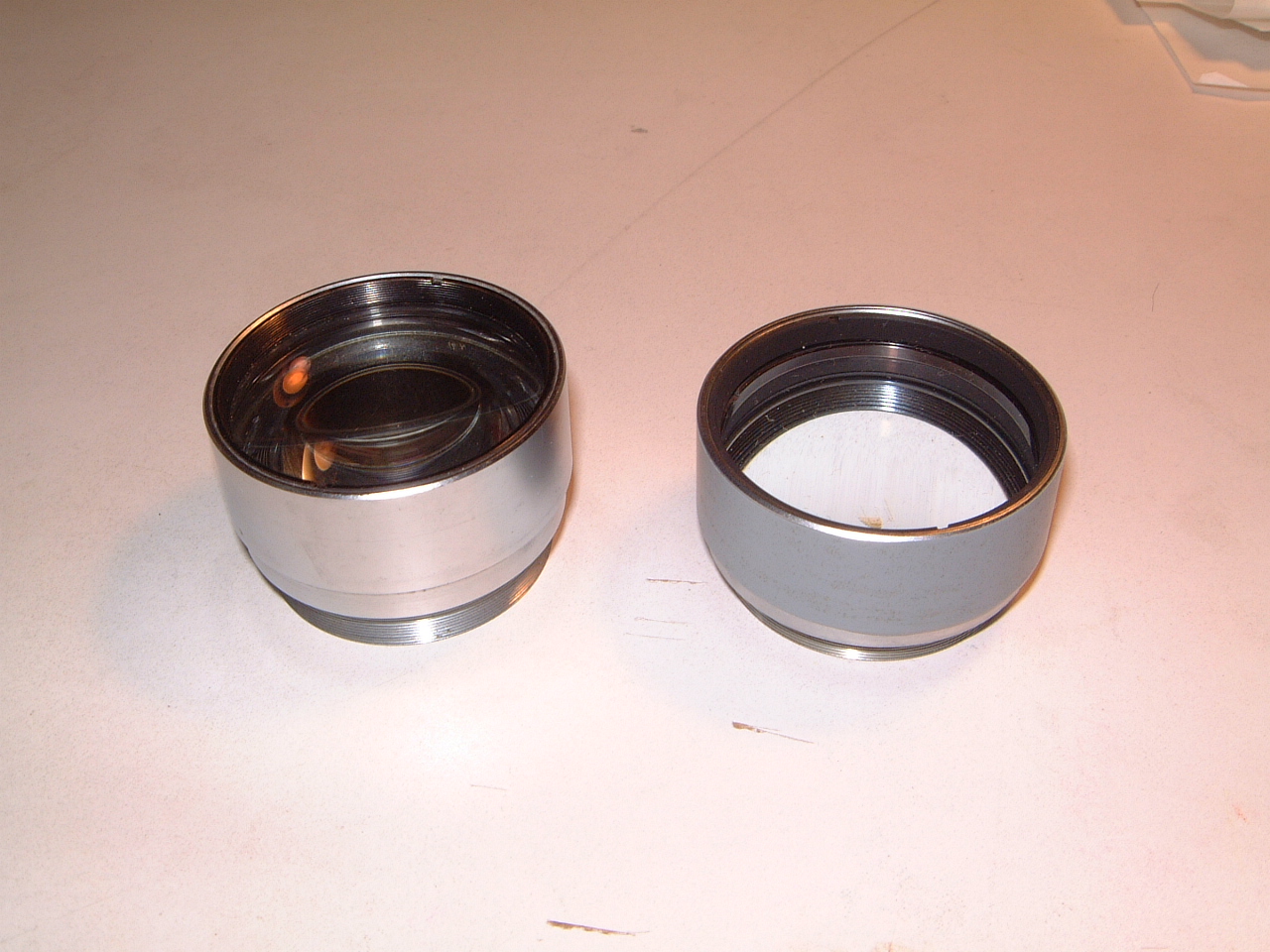

Kern Theodolite Telescope objectives

Kern Theodolite Telescope objectives

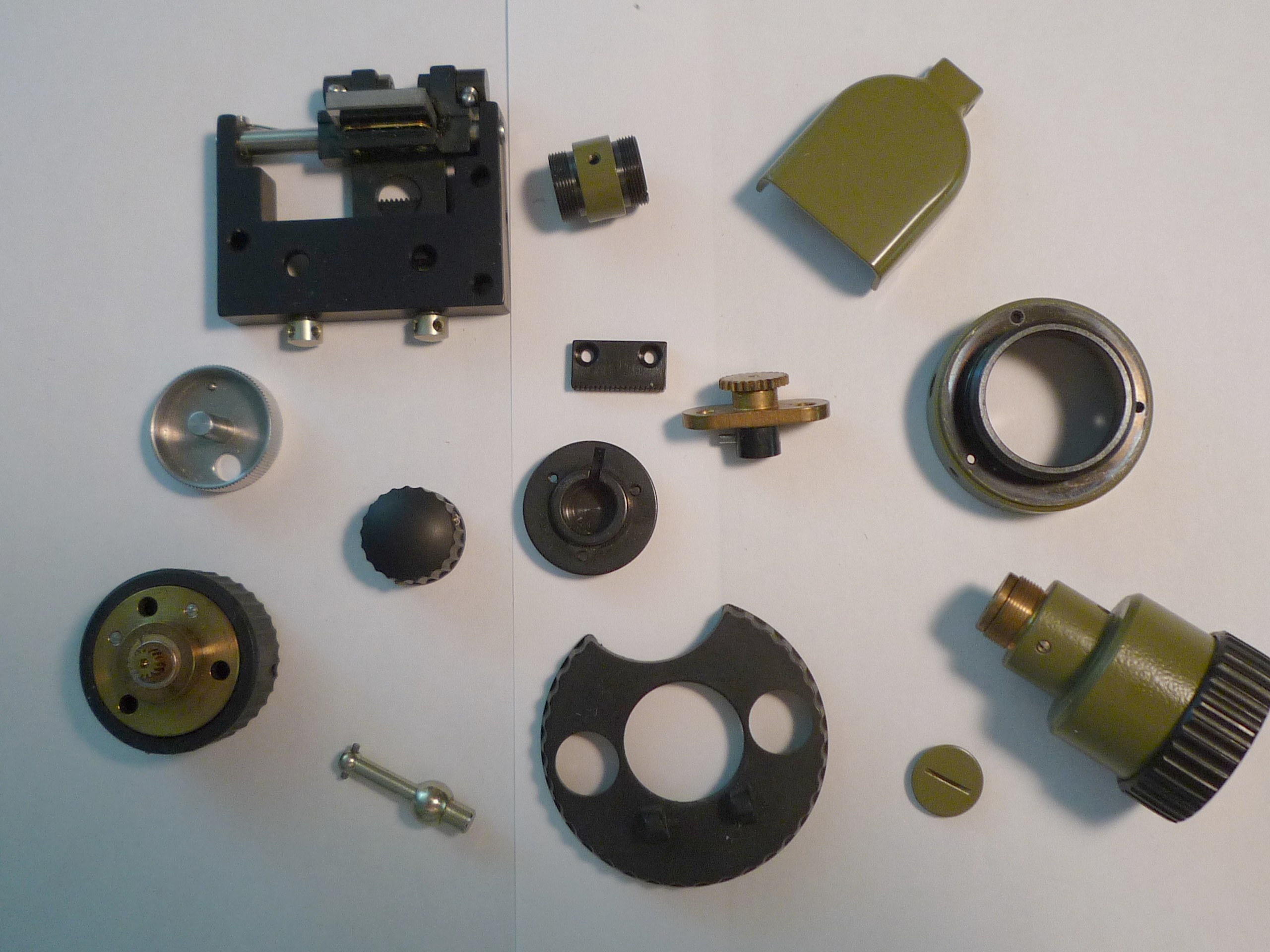

Mechanical Parts for Kern instruments

Mechanical Parts for Kern instruments

The parts are new or used with very good condition, many are not shown in pictures. Please ask for detailed information.

Optical parts for Kern instruments

Optical parts for Kern DKM2-A theodolites

The parts are new or used with very good condition, many are not shown in pictures. Please ask for detailed information.

Kern Optical set of right angle prism for DKM1

Kern Optical set of right angle prism for DKM1
